![HARTING 09661117501 9229660](http://nguyenxuong.com/cdn/shop/products/F1602641-01_9a6677bf-4f8d-4c53-b643-1b8642e5dbfe_444x253.jpg?v=1594003670)

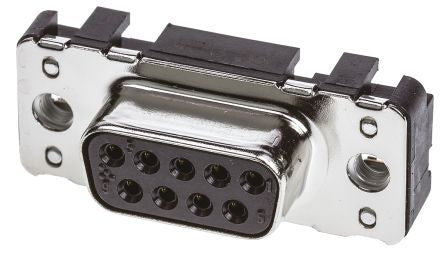

Harting 9 Way Through Hole PCB D-sub Connector Socket, 2.74mm Pitch, with M3 Threaded Inserts [09661117501]; 922-9660
by HARTING
0₫
Mã kho: 9229660
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 9 |
Gender | Female |
Body Orientation | Straight |
Mounting Type | Through Hole |
Pitch | 2.74mm |
Mounting Hardware | M3 Threaded Inserts |
Termination Method | Solder |
Current Rating | 7.5A |
Housing Material | Steel |
Length | 31.2mm |
Depth | 12.5mm |
Minimum Operating Temperature | -55.0°C |
Contact Material | Copper Alloy |
Contact Plating | Gold |
Maximum Operating Temperature | +125°C |
