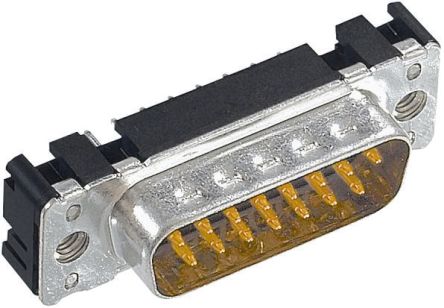

Harting 25 Way Through Hole PCB D-sub Connector Plug, 2.76mm Pitch, with 4-40 UNC Threaded Inserts, Boardlocks [09653616713]; 923-5132
by HARTING
0₫
Mã kho: 9235132
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 2.76mm |
| Termination Method | Solder |
| Mounting Hardware | Boardlocks, 4-40 UNC Threaded Inserts |
| Current Rating | 7.5A |
| Housing Material | Steel |
| Length | 53.2mm |
| Width | 12.4mm |
| Depth | 12.5mm |
| Dimensions | 53.2 x 12.4 x 12.5mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55.0°C |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
