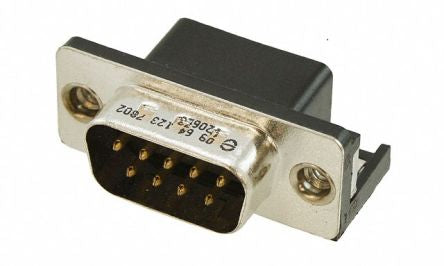

Harting D-Sub Filter Series, 9 Way Right Angle Through Hole Filtered PCB D-Sub Connector Plug, 2.77mm Pitch [09641237802]; 692-7453
by HARTING
0₫
Mã kho: 6927453
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.77mm |
| Mounting Hardware | Boardlocks, 4-40 UNC Threaded Inserts |
| Termination Method | Solder |
| Current Rating | 7.5A |
| Housing Material | PBT |
| Voltage Rating | 250 V ac |
| Length | 30.8mm |
| Width | 18.5mm |
| Depth | 12.5mm |
| Dimensions | 30.8 x 18.5 x 12.5mm |
| Contact Plating | Gold |
| Series | D-Sub Filter |
| Series Number | 964 |
