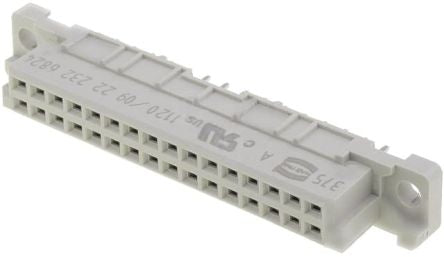

Harting 09 23 Series 48 Way 2.54mm Pitch, Type 2C Class C1, 3 Row, Straight DIN 41612 Connector, Socket [09232482825]; 740-6837
by HARTING
0₫
Mã kho: 7406837
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 48 |
| Gender | Female |
| Number of Rows | 3 |
| Body Orientation | Straight |
| Termination Method | Solder |
| Row Loading | A/b/c |
| Type | 2C |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Class Rating | C1 |
| Current Rating | 2A |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -55°C |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | +125°C |
| Series | 09 23 |
