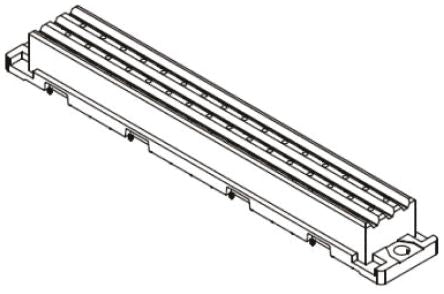

Harting 09 06 Series 48 Way 3.81 mm, 5.08 mm Pitch, Type F Class C2, 3 Row, Straight DIN 41612 Connector, Socket [09062486833]; 923-1809
by HARTING
0₫
Mã kho: 9231809
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 48 |
| Gender | Female |
| Number of Rows | 3 |
| Body Orientation | Straight |
| Termination Method | Solder |
| Row Loading | Z/b/d |
| Type | F |
| Pitch | 3.81 mm, 5.08 mm |
| Contact Plating | Gold over Nickel |
| Class Rating | C2 |
| Current Rating | 6A |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 15mΩ |
| Housing Material | Thermoplastic |
| Series | 09 06 |
| Minimum Operating Temperature | -55°C |
| Voltage Rating | 125 V ac |
| Maximum Operating Temperature | +125°C |
