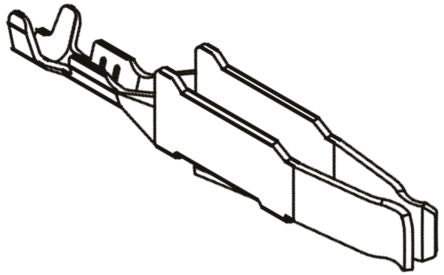

Harting 09 06 Series Straight Female Silver Plated Copper Alloy DIN Connector Contact [09060008484]; 741-2784
by HARTING
0₫
Mã kho: 7412784
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | 09 06 |
Orientation | Straight |
For Use With | DIN41612 Type D Female Connector, DIN41612 Type E Female Connector, DIN41612 Type F Female Connector |
Gender | Female |
Contact Plating | Silver |
Maximum Contact Resistance | 20.0mΩ |
Contact Material | Copper Alloy |
Current Rating | 6.0A |
Mounting Type | Cable Mount |
Maximum Operating Temperature | 125.0°C |
Minimum Operating Temperature | -55.0°C |
