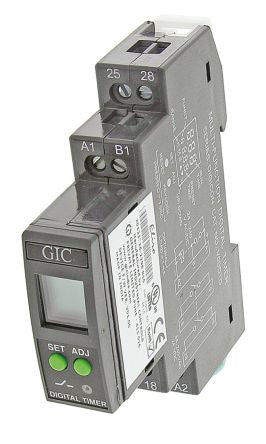

GIC Multi Function Timer Relay, Screw, 0.1 s → 999 h, SPDT, 1 Contacts, DPST, 24 → 240 V ac/dc [V0DDTD]; 714-0029
by GIC
0₫
Mã kho: 7140029
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 240 V ac/dc |
| Time Range | 0.1 s → 999 h |
| Mode of Operation | Cyclic OFF/ON, Cyclic ON/OFF, Interval, ON Delay, One Shot Output, Signal OFF Delay, Signal OFF/ON, Signal ON/OFF |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 1 |
| Time Increment | Hours, Seconds |
| Contact Configuration | SPDT |
| Current Maximum | 0.333333333333333 |
| Terminal Type | Screw |
| Minimum Voltage | 125 V ac/dc |
| Maximum Voltage | 240 V ac, 250 V dc |
| Width | 17.5mm |
| Length | 89mm |
| Depth | 76mm |
| Contact Material | Silver Tin |
| Minimum Operating Temperature | -10°C |
| Switch Configuration | DPST |
| Maximum Operating Temperature | +55°C |
