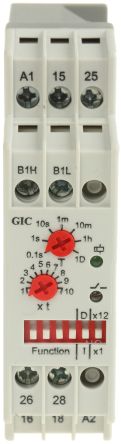

GIC Multi Function Timer Relay, Screw, 0.1 s → 120 Days, SPDT, 2 Contacts, DPDT, 24 → 240 V ac/dc [2A8DT6]; 818-4575
by GIC
0₫
Mã kho: 8184575
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 → 240 V ac/dc |
Time Range | 0.1 s → 120 Days |
Mode of Operation | Accumulative Delay On Signal, Cyclic OFF/ON, Cyclic ON/OFF, Delayed Impulse, Impulse ON/OFF, Interval, Inverted Signal On Delay, Leading Edge Impulse, ON Delay, One Shot, Signal ON/OFF Delay, Step Mode, Trailing Edge Impulse |
Mounting Type | DIN Rail |
Number of Timer Functions | Multi Function |
Number of Contacts | 2 |
Time Increment | Hours, Minutes, Seconds |
Power Supply | External |
Contact Configuration | SPDT |
Current Maximum | 0.208333333333333 |
Terminal Type | Screw |
Minimum Voltage | 24 V ac/dc |
Maximum Voltage | 240 V ac/dc |
Minimum Operating Temperature | -10°C |
Contact Material | Silver Nickel |
Depth | 100.5mm |
Maximum Operating Temperature | +60°C |
Length | 83mm |
Time Delay | 100 (Signal Stabilization) ms |
Width | 22.5mm |
Switch Configuration | DPDT |
