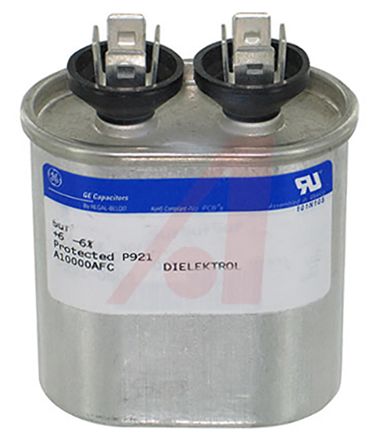

Genteq 20μF Polypropylene Capacitor PP 600V ac ±6% Tolerance GEM III 97F8200 Series [97F8253]; 908-4445
by Genteq
0₫
Mã kho: 9084445
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 20 µF |
| Voltage | 600 V ac |
| Tolerance | ±6% |
| Series | GEM III 97F8200 |
| Lead Pitch | 20.57mm |
| Length | 68.33mm |
| Depth | 39.62mm |
| Height | 120.65mm |
| Dimensions | 2.69 x 1.56 x 4.75in |
| Dielectric | Metallised Polypropylene |
| Maximum Operating Temperature | +70°C |
| Dissipation Factor | 0.001 |
| Dielectric Material Family | Polypropylene (PP) |
| Equivalent Series Resistance | 33.4mΩ |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Quick Connect |
