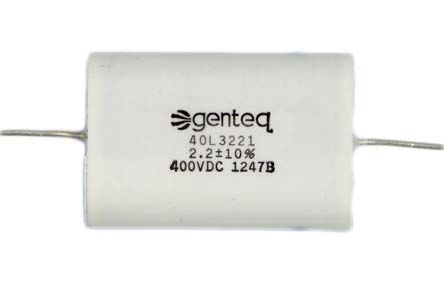

Genteq 2.2μF Polypropylene Capacitor PP 250 V ac, 400 V dc ±10% Tolerance 40L Series [40L3221]; 909-0762
by Genteq
0₫
Mã kho: 9090762
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2.2 µF |
| Voltage | 250 V ac, 400 V dc |
| Tolerance | ±10% |
| Series | 40L |
| Length | 31.75mm |
| Depth | 14.22mm |
| Height | 21.08mm |
| Dimensions | 1.25 x 0.56 x 0.83in |
| Dielectric | Metallised Polypropylene |
| Equivalent Series Resistance | 8mΩ |
| Dielectric Material Family | Polypropylene (PP) |
| Dissipation Factor | 0.001 |
| Lead Length | 50.8mm |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Axial |
| Lead Diameter | 20AWG |
