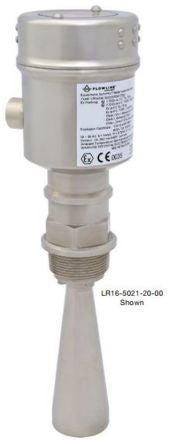

Flowline LR16 Series Vertical Mounting Level Transmitter 2 Wire, 4 to 20 mA, HART 7 Output HART, USB [LR16-5021-20-01]; 137-2040
by Flowline
0₫
Mã kho: 1372040
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Device Type | Pulse Radar Liquid Level Transmitter |
| Mounting Type | Vertical |
| Switch Output | HART 7, 2 Wire, 4 to 20 mA |
| Body Material | Stainless Steel 316L |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +150°C |
| Maximum DC Voltage | 26.4V |
| Maximum Current | 20 mA |
| Maximum Pressure | 10bar |
| Gasket Material | Silicone |
| Interface | HART, USB |
| Current Rating | 22.5 mA |
| Standards Met | ANSI, CE, Class I, Class II Groups E/F/G, CRN, CSA, CSA Class I Div 1 Groups A/B/C/D, FCC, Zone 0 IIC, Zone 20 Group IIC |
| Series | LR16 |
