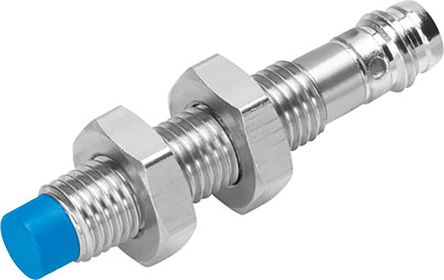

Festo, M8 x 1, PNP-NO Inductive Sensor 45mm Length, 10 → 30 V dc supply voltage , IP65, IP67 Rating [SIEN-M8NB-PS-S-L]; 125-9892
by Festo
0₫
Mã kho: 1259892
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | PNP-NO |
| Detection Range | 2.5 mm |
| Terminal Type | M8 - 3 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 45mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| IP Rating | IP65, IP67 |
| Switching Current | 200 mA |
| Housing Material | PBT, Stainless Steel |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 5kHz |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Standards Met | CE, CULus, EN 60947-5-2, EU EMC, RCM |
