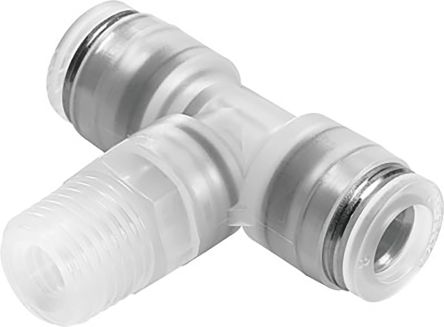

Festo Pneumatic Tee Threaded-to-Tube Adapter, R 1/4 Male x 4mm x 4mm, 10 bar [NPQP-T-R14-Q4-FD-P10]; 125-9698
by Festo
0₫
Mã kho: 1259698
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Style | Threaded-to-Tube |
| Connector A | Push In 4 mm |
| Connector B | Push In 4 mm |
| Branch Connector | R 1/4 |
| Branch Connector - Gender | Male |
| Manufacturer Series | NPQP |
| Body Material | Polypropylene |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Chemical Resistant | Yes |
| Food Grade | Yes |
| Standards Met | ANSI/NSF 51, FDA 21 CFR 177.1520, FDA 21 CFR 177.2600, NSF H1 Reg. No. 123949 |
