![Festo MS4-LFR-1/4-D7-EUV-AS 1215656](http://nguyenxuong.com/cdn/shop/products/F1215656-01_444x295.jpg?v=1594024353)

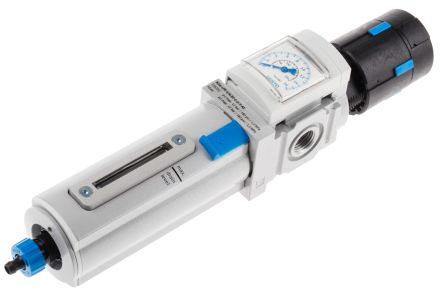

Festo MS4-LFR Filter Regulator 40μm G 1/4, 12 bar [MS4-LFR-1/4-D7-EUV-AS]; 121-5656
by Festo
0₫
Mã kho: 1215656
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Manufacturer Series | MS4-LFR |
Port Connection | G 1/4 |
Drain Type | Automatic |
Filtration Size | 40µm |
Pressure Gauge Port | G 1/4 |
Pressure Gauge Port Thread Size | 1/4 in |
Port Connection Thread Size | 1/4 in |
Maximum Operating Pressure | 12 bar |
Maximum Ambient Operating Temperature | +60°C |
Minimum Process Operating Temperature | +5°C |
Minimum Operating Pressure | 2bar |
Ambient Operating Temperature Range | +5 → +60°C |
Bowl Material | Metal |
Pressure Gauge Port Thread Standard | G |
Port Connection Thread Standard | G |
Maximum Process Operating Temperature | +60°C |
Minimum Ambient Operating Temperature | +5°C |
Process Operating Temperature Range | +5 → +60°C |
