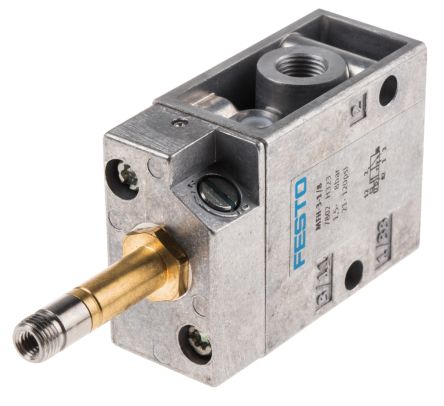

Festo 3/2 Pneumatic Solenoid Valve Solenoid/Spring G 1/8 MFH Series [MFH-3-1/8]; 121-5645
by Festo
0₫
Mã kho: 1215645
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | MFH |
| Mounting Style | Through Hole |
| Function | 43892 |
| Connection Port Thread | G 1/8 |
| Actuation Type | Solenoid/Spring |
| Solenoid Fitted | No |
| Body Material | Aluminium |
| Maximum Flow Rate | 500L/min |
| Solenoid Voltage | 48 V dc, 240 V ac |
| Solenoid Power Consumption | 4.5W |
| Minimum Operating Pressure | 0bar |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +40°C |
| Number of Positions | 2 |
| Number of Ports | 3 |
| Thread Size | 1/8in |
| Maximum Operating Pressure | 8 bar |
| Thread Standard | BSPP |
