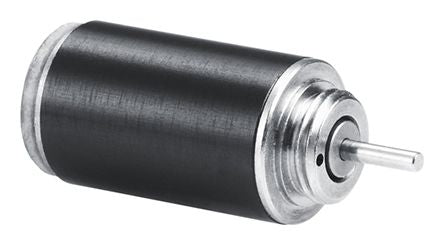

Faulhaber Bipolar Bipolar, Unipolar Stepper Motor 18°, 0.65mNm, 3 V dc, 150 mA, 4 Wires [AM0820-V3-18-08 C06.072A 08/1 256:1]; 921-1347
by Faulhaber
0₫
Mã kho: 9211347
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Step Angle | 18° |
| Holding Torque | 0.65mNm |
| Number Of Wires | 4 |
| Voltage Rating | 3 V dc |
| Stepper Motor Type | Bipolar, Unipolar |
| Shaft Diameter | 2.34mm |
| Current Rating | 150 mA |
| Winding Arrangement | Bipolar |
| Shaft Length | 3.85mm |
| Depth | 16.75mm |
| Number of Pole Pairs | 2 |
| Resistance Per Phase | 18Ω |
| Series | AM0820 |
| Detent Torque | 0.17mNm |
