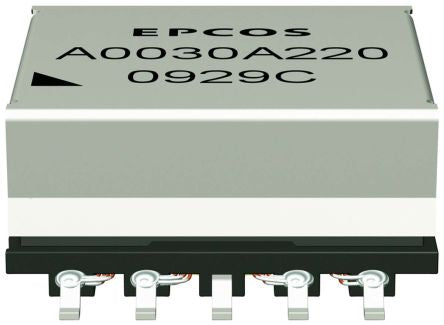

3 Output 30W DC to DC Converter, Flyback, Power Over Ethernet, Power Sourcing Equipment, Powered Devices [B82802A0030A320]; 162-0280
by EPCOS
0₫
Mã kho: 1620280
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Secondary Voltage Rating | 3.3 (Output 2) V, 5 (Output 1) V, 12 (Output 3) V |
| Primary Voltage Rating | 36 → 60V dc |
| Power Rating | 30W |
| Number of Outputs | 3 |
| Mounting Type | Surface Mount |
| Application | DC to DC Converter, Flyback, Power Over Ethernet, Power Sourcing Equipment, Powered Devices |
| Inductance | 40µH |
| Termination Type | Gullwing |
| Length | 25.7mm |
| Dimensions | 25.7 x 22 x 10.7mm |
| Isolation Voltage | 1.5kV ac |
| Leakage Inductance | 1.8µH |
| Primary DC Resistance | 18mΩ |
| Core Type | EFD |
| Minimum Temperature | -40°C |
| Turns Ratio | 1:2.25:0.75:6.5 |
| Secondary DC Resistance | 0.01 (Output 3) Ω, 0.04 (Output 1) Ω, 0.1 (Output 2) Ω |
| Maximum Temperature | +125°C |
| Construction | Enclosed |
| Standards Met | JEDEC J-STD-020D, RoHS Complaint |
| Maximum Operating Frequency | 100kHz |
