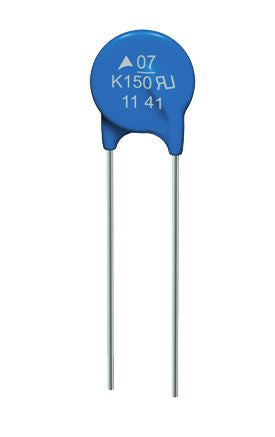

EPCOS Standard Series Disc Varistor 245pF 10A, Clamping 340V, Varistor 205V [B72207S0131K101]; 138-5693
by EPCOS
0₫
Mã kho: 1385693
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 205V |
| Maximum AC Voltage Rating | 130Vrms |
| Maximum DC Voltage Rating | 170V |
| Clamping Voltage | 340V |
| Clamping Current | 10A |
| Energy | 9.5J |
| Series | Standard |
| Maximum Surge Current | 1200A |
| Capacitance | 245pF |
| Length | 9mm |
| Depth | 11mm |
| Thickness | 3.6mm |
| Dimensions | 9 x 3.6 x 11mm |
| Lead Pitch | 1.6 mm, 5 mm |
