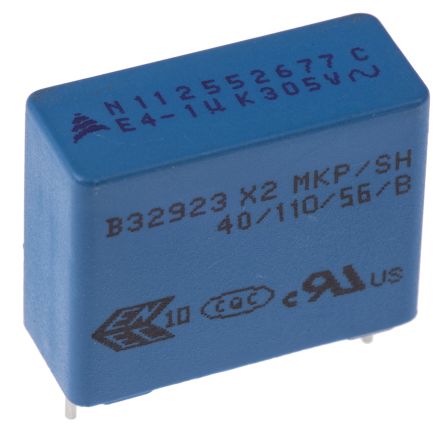

EPCOS 1μF Polypropylene Capacitor PP 305V ac ±10% Tolerance Through Hole B32923C Series [B32923C3105K000]; 172-5671
by EPCOS
0₫
Mã kho: 1725671
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1 µF |
| Voltage | 305 V ac |
| Mounting Type | Through Hole |
| Tolerance | ±10% |
| Series | B32923C |
| Lead Pitch | 22.5mm |
| Length | 26.5mm |
| Depth | 11mm |
| Height | 20.5mm |
| Dimensions | 26.5 x 11 x 20.5mm |
| Dielectric | PP |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Lead Diameter | 0.8mm |
