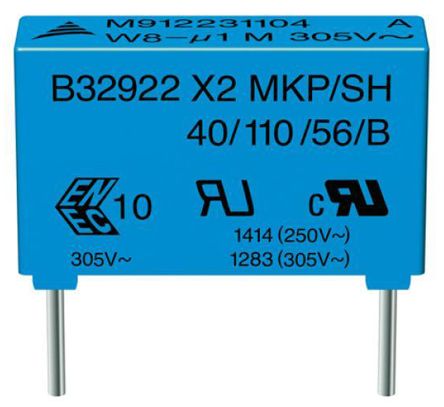

EPCOS 470nF Polypropylene Capacitor PP 305 V ac, 630 V dc ±20% Tolerance B32922H Series [B32922H3474M000]; 172-7545
by EPCOS
0₫
Mã kho: 1727545
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 nF |
| Voltage | 305 V ac, 630 V dc |
| Tolerance | ±20% |
| Series | B32922H |
| Lead Pitch | 15mm |
| Suppression Class | X2 |
| Length | 18mm |
| Depth | 11mm |
| Height | 18.5mm |
| Dimensions | 18 x 11 x 18.5mm |
| Lead Diameter | 0.8mm |
| Lead Length | 7mm |
| Terminal Type | Radial |
| Dissipation Factor | 1 @ 1 kHz, 5 @ 100 kHz |
| Dielectric Material Family | Metallised Polypropylene Film |
| Maximum Operating Temperature | +110°C |
