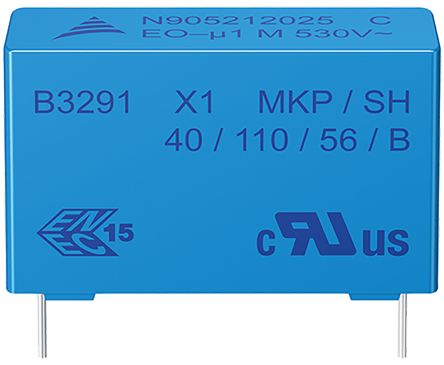

EPCOS 220nF Polypropylene Capacitor PP 330V ac ±20% Tolerance Through Hole B32912 Series [B32912B3224M000]; 185-5016
by EPCOS
0₫
Mã kho: 1855016
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 nF |
| Voltage | 330 V ac |
| Mounting Type | Through Hole |
| Tolerance | ±20% |
| Series | B32912 |
| Lead Pitch | 15mm |
| Suppression Class | X1 |
| Length | 18mm |
| Depth | 8.5mm |
| Height | 14.5mm |
| Dimensions | 18 x 8.5 x 14.5mm |
| Dielectric | Polypropylene |
| Lead Length | 6mm |
| Terminal Type | Solder |
| Lead Diameter | 0.8mm |
| Dissipation Factor | 1 x 10^-3% |
| Maximum Operating Temperature | +110°C |
| Dielectric Material Family | Polypropylene (PP) |
