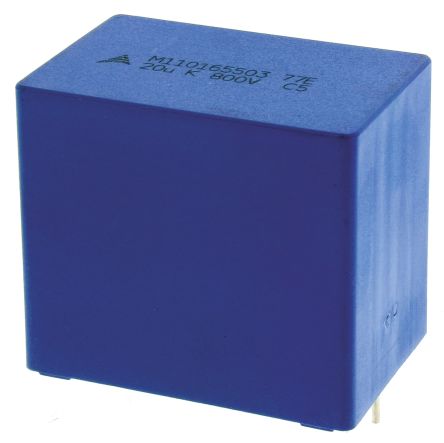

EPCOS 20μF Polypropylene Capacitor PP 800V dc ±10% Tolerance Through Hole B32776 Series [B32776E8206K000]; 172-6037
by EPCOS
0₫
Mã kho: 1726037
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 20 µF |
| Voltage | 800 V dc |
| Mounting Type | Through Hole |
| Tolerance | ±10% |
| Series | B32776 |
| Lead Pitch | 37.5mm |
| Length | 42mm |
| Depth | 28mm |
| Height | 37mm |
| Dimensions | 42 x 28 x 37mm |
| Dielectric | PLYP |
| Lead Diameter | 1mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Equivalent Series Resistance | 6.5mΩ |
| Terminal Type | Through Hole |
