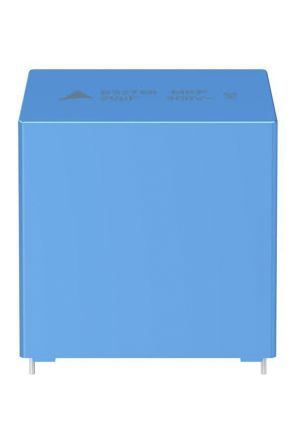

EPCOS 15μF Polypropylene Capacitor PP 350 V ac, 600 V dc ±10% Tolerance Through Hole B32756 Series [B32756G8156K000]; 185-5421
by EPCOS
0₫
Mã kho: 1855421
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 15 µF |
| Voltage | 350 V ac, 600 V dc |
| Mounting Type | Through Hole |
| Tolerance | ±10% |
| Series | B32756 |
| Lead Pitch | 37.5mm |
| Length | 42mm |
| Depth | 33mm |
| Height | 48mm |
| Dimensions | 42 x 33 x 48mm |
| Dielectric | Polypropylene |
| Maximum Operating Temperature | +105°C |
| Dielectric Material Family | Polypropylene (PP) |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | 1 x 10^-3% |
| Terminal Type | Solder |
| Lead Diameter | 1 mm, 1.2 mm |
| Lead Length | 6mm |
