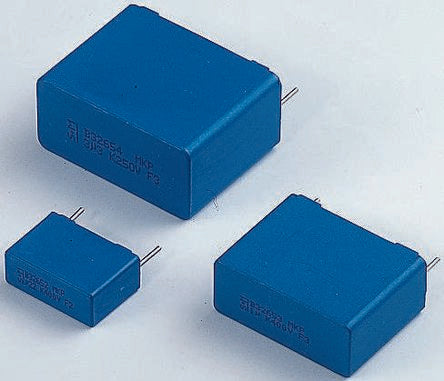

EPCOS 10nF Polypropylene Capacitor PP 1.6 kV dc, 500 V ac ±10% Tolerance Through Hole B32653 Series [B32653A1103K289]; 172-5967
by EPCOS
0₫
Mã kho: 1725967
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 nF |
| Voltage | 1.6 kV dc, 500 V ac |
| Mounting Type | Through Hole |
| Tolerance | ±10% |
| Series | B32653 |
| Lead Pitch | 22.5mm |
| Length | 26.5mm |
| Depth | 6mm |
| Height | 15mm |
| Dimensions | 26.5 x 6 x 15mm |
| Dielectric | PP |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +100°C |
| Lead Diameter | 0.8mm |
