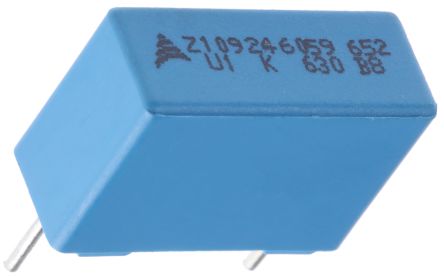

EPCOS 100nF Polypropylene Capacitor PP 250 V ac, 630 V dc ±10% Tolerance Through Hole B32652 Series [B32652A6104K000]; 172-5620
by EPCOS
0₫
Mã kho: 1725620
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 nF |
| Voltage | 250 V ac, 630 V dc |
| Mounting Type | Through Hole |
| Tolerance | ±10% |
| Series | B32652 |
| Lead Pitch | 15mm |
| Length | 18mm |
| Depth | 7mm |
| Height | 12.5mm |
| Dimensions | 18 x 7 x 12.5mm |
| Dielectric | PP |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Through Hole |
| Lead Diameter | 0.8mm |
