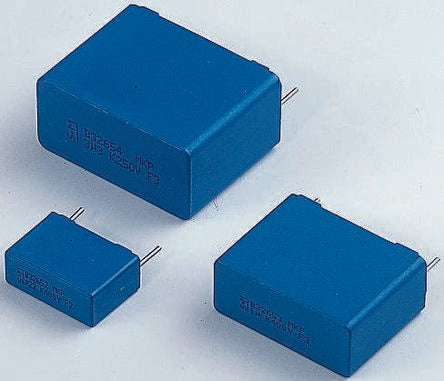

EPCOS 10nF Polypropylene Capacitor PP 1.6 kV dc, 500 V ac ±10% Tolerance Through Hole B32652 Series [B32652A1103K289]; 172-5635
by EPCOS
0₫
Mã kho: 1725635
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 10 nF |
Voltage | 1.6 kV dc, 500 V ac |
Mounting Type | Through Hole |
Tolerance | ±10% |
Series | B32652 |
Lead Pitch | 15mm |
Length | 18mm |
Depth | 8.5mm |
Height | 14.5mm |
Dimensions | 18 x 8.5 x 14.5mm |
Dielectric | PP |
Maximum Operating Temperature | +100°C |
Terminal Type | Through Hole |
Minimum Operating Temperature | -55°C |
Lead Diameter | 0.8mm |
