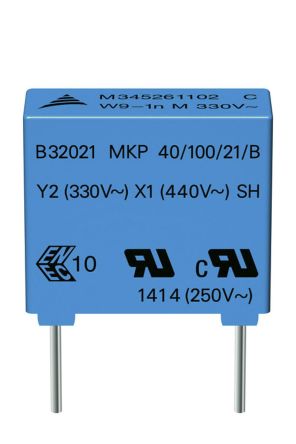

EPCOS 1nF Polypropylene Capacitor PP 300V ac ±10% Tolerance Through Hole B32021 Series [B32021A3102K000]; 185-4948
by EPCOS
0₫
Mã kho: 1854948
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1 nF |
| Voltage | 300 V ac |
| Mounting Type | Through Hole |
| Tolerance | ±10% |
| Series | B32021 |
| Lead Pitch | 10mm |
| Suppression Class | Y2 |
| Length | 13mm |
| Depth | 4mm |
| Height | 9mm |
| Dimensions | 13 x 4 x 9mm |
| Dielectric | Polypropylene |
| Lead Diameter | 0.6mm |
| Lead Length | 6mm |
| Dielectric Material Family | Polypropylene (PP) |
| Dissipation Factor | 1 x 10^-3% |
| Terminal Type | Solder |
| Maximum Operating Temperature | +110°C |
