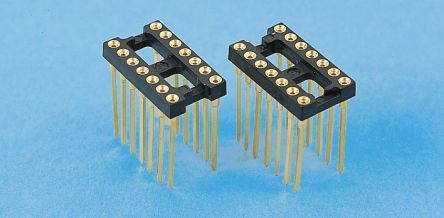

E-TEC 2.54mm Pitch Vertical 14 Way, Through Hole Turned Pin Open Frame IC Dip Socket [POS-314-S003-55]; 615-5279
by E-TEC
0₫
Mã kho: 6155279
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 14 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Wire Wrap |
| Contact Plating | Gold |
| Orientation | Vertical |
| Length | 17.7mm |
| Width | 4.9mm |
| Contact Material | Beryllium Copper |
| Housing Material | PBT |
