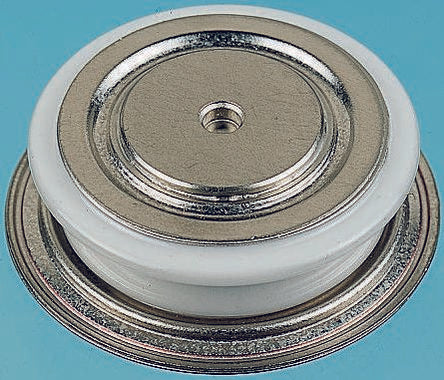

Dynex 1400V 620A, Diode, 2-Pin Type T DRD520T14 [DRD520T14]; 760-9308
by Dynex
0₫
Mã kho: 7609308
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Capsule |
| Package Type | Type T |
| Maximum Continuous Forward Current | 620A |
| Peak Reverse Repetitive Voltage | 1400V |
| Diode Configuration | Single |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.45V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 5.9kA |
| Diameter | 42mm |
