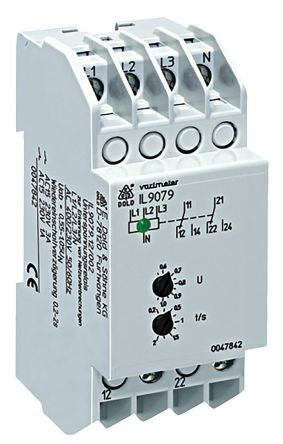

Dold Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 230/400 V ac [IL9079.12/002 3AC230/400V 0.55-1.05UN 0.2-2S]; 291-3150
by Dold
0₫
Mã kho: 2913150
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 230/400 V ac |
| Contact Configuration | DPDT |
| Voltage Sensitivity | Undervoltage |
| Electrical Phase | 3 |
| Time Delay | 0.2 → 2 s |
| Height | 90mm |
| Operating Temperature Range | -20 → +60 °C |
| Width | 35mm |
| Length | 59mm |
| Dimensions | 59 x 35 x 90 mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
