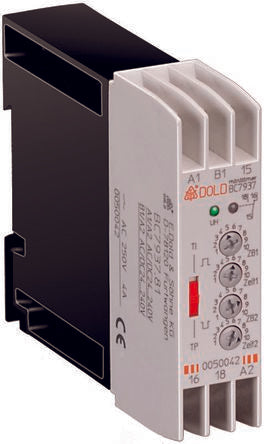

Dold Continuous Single Timer Relay, Screw, 0.05s → 300h, SPDT, 1 Contacts, 24 → 240 V ac/dc [BC7937N.81 AC/DC24V-240V 0.05S-300H]; 358-7617
by Dold
0₫
Mã kho: 3587617
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 → 240 V ac/dc |
Time Range | 0.05s → 300h |
Mode of Operation | Continuous |
Mounting Type | DIN Rail |
Number of Timer Functions | Single |
Number of Contacts | 1 |
Series | BC7937N |
Time Increment | Hours, Minutes, Seconds |
Power Supply | External |
Contact Configuration | SPDT |
Current Maximum | 2 (dc) A, 3 (ac) A |
Terminal Type | Screw |
Minimum Voltage | 24 V ac |
Maximum Voltage | 240 V ac/dc |
Width | 22.5mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Length | 84mm |
Depth | 97mm |
Time Delay | <=50 (Recovery) ms |
