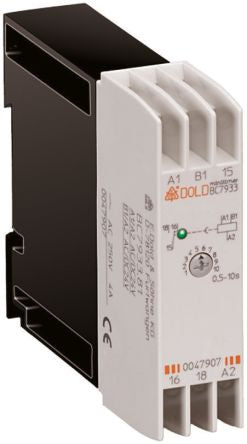

Dold Continuous Single Timer Relay, Screw, 0.5 → 10 s, SPDT, 1 Contacts, 110 → 240 V ac [BC7933N.81 AC110-240V 0.5-10S]; 358-6872
by Dold
0₫
Mã kho: 3586872
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 110 → 240 V ac |
| Time Range | 0.5 → 10 s |
| Mode of Operation | Continuous |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Number of Contacts | 1 |
| Series | BC7933N |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 0.125 |
| Terminal Type | Screw |
| Minimum Voltage | 110 V ac |
| Maximum Voltage | 240 V ac |
| Depth | 97mm |
| Width | 22.5mm |
| Minimum Operating Temperature | -20°C |
| Length | 84mm |
| Time Delay | <=50 (Recovery) ms |
| Maximum Operating Temperature | +60°C |
