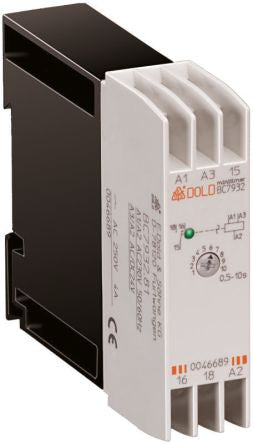

Dold Flash Single Timer Relay, Screw, 0.5 → 10 s, SPDT, 1 Contacts, 24 V ac/dc, 230 V ac [BC7932N.81 AC/DC24V + AC230V 0.5-10S]; 358-7156
by Dold
0₫
Mã kho: 3587156
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 V ac/dc, 230 V ac |
Time Range | 0.5 → 10 s |
Mode of Operation | Flash |
Mounting Type | DIN Rail |
Number of Timer Functions | Single |
Number of Contacts | 1 |
Series | BC7932N |
Time Increment | Seconds |
Power Supply | External |
Contact Configuration | SPDT |
Current Maximum | 0.125 |
Terminal Type | Screw |
Maximum Voltage | 230 V ac |
Depth | 97mm |
Minimum Operating Temperature | -20°C |
Length | 84mm |
Time Delay | <=100 (Recovery) ms |
Width | 22.5mm |
Maximum Operating Temperature | +60°C |
