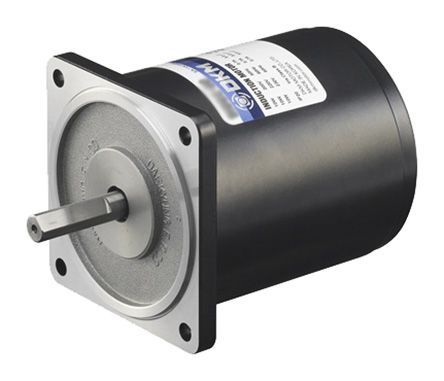

DKM Reversible Induction AC Motor, 25 W, 1 Phase, 4 Pole, 220 V, 240 V [8IDGE-25G]; 103-3978
by DKM
0₫
Mã kho: 1033978
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Rating | 25 W |
| Frequency Rating | 50Hz |
| AC Motor Type | Induction |
| Supply Voltage | 220 V, 240 V |
| Phase | 1 |
| Output Speed | 1200 rpm |
| Number of Poles | 4 |
| Shaft Diameter | 10mm |
| Shaft Length | 29mm |
| Length | 81mm |
| Width | 81mm |
| Depth | 91mm |
| Dimensions | 81 x 81 x 91 mm |
| Standards Met | JIS C4003 (IEC 60085) |
| Current Rating | 230 mA @ 220 V, 250 mA @ 240 V |
| Bearing Type | Ball |
| Rotation | Reversible |
| Maximum Output Torque | 0.220 Nm |
