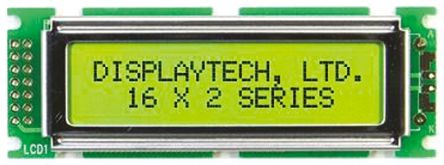

Displaytech 162D-BC-BC Alphanumeric LCD Display, Yellow on Green, 2 Rows by 16 Characters, Transflective [162D-BC-BC]; 532-6486
by Displaytech
0₫
Mã kho: 5326486
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Display Type | Alphanumeric |
Character Matrix | 2 Rows by 16 Characters |
Characters per Row | 16 |
Character Rows | 2 |
Character Width | 2.8mm |
Character Height | 4.9mm |
Viewing Area Dimensions | 62 x 16mm |
Viewing Area Height | 16mm |
Viewing Area Width | 62mm |
External Depth | 10mm |
Illumination Colour | Yellow |
Backlight Type | LED |
Background Colour | Green |
External Width | 85mm |
External Height | 30mm |
External Dimensions | 85 x 10 x 30mm |
Controller Type | ST7066U |
Display Matrix Technology | STN |
Display Mode | Transflective |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Operating Temperature Range | -10 → +60°C |
