![DiodesZetex ZXMP6A13GTA 7082490](http://nguyenxuong.com/cdn/shop/products/L287235-16_2c53a00d-235c-406e-9dc2-f3c58044048f_444x315.jpg?v=1594181431)

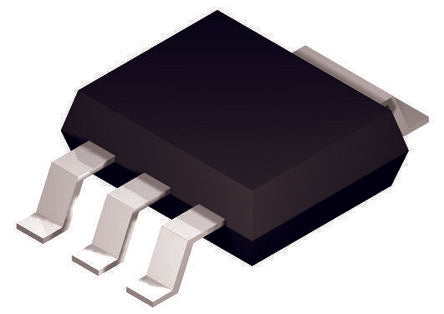

ZXMP6A13GTA P-Channel MOSFET, 2.3 A, 60 V, 3+Tab-Pin SOT-223 Diodes Inc [ZXMP6A13GTA]; 708-2490
by DiodesZetex
0₫
Mã kho: 7082490
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 2.3 A |
Maximum Drain Source Voltage | 60 V |
Package Type | SOT-223 |
Mounting Type | Surface Mount |
Pin Count | 3 + Tab |
Maximum Drain Source Resistance | 595 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 3.9 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Height | 1.8mm |
Maximum Operating Temperature | +150 °C |
Length | 6.7mm |
Width | 3.7mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 5.9 nC @ 10 V |
