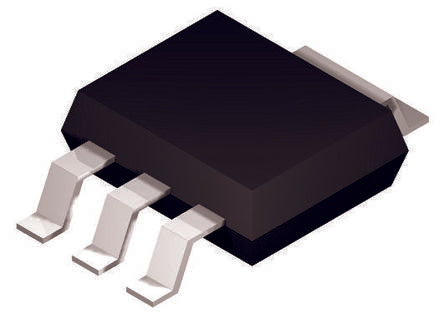

Diodes Inc ZSR800GTA Linear Voltage Regulator, 200mA, 8 V, 2.5% 3+Tab-Pin, SOT-223 [ZSR800GTA]; 169-0595
by DiodesZetex
0₫
Mã kho: 1690595
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 8 V |
| Maximum Output Current | 200mA |
| Package Type | SOT-223 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 10 V |
| Maximum Input Voltage | 20 V |
| Pin Count | 3+Tab |
| Power Rating | 2W |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Height | 1.65mm |
| Width | 3.55mm |
| Quiescent Current | 0.6mA |
| Series | ZSR |
| Load Regulation | 30 mV |
| Length | 6.55mm |
| Accuracy | 0.025 |
| Dimensions | 6.55 x 3.55 x 1.65mm |
| Line Regulation | 40 mV |
