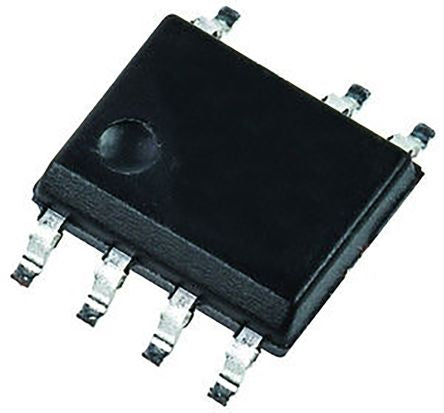

DiodesZetex AL1697-20CS7-13, DC-DC DC-DC Converter, Maximum of 600 V dc 7-Pin SOIC [AL1697-20CS7-13]; 133-3325
by DiodesZetex
0₫
Mã kho: 1333325
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Output Voltage | 8.5 V dc |
| Maximum Output Voltage | 600 V dc |
| Maximum Input Voltage | 18 V dc |
| Maximum Output Current | 2A |
| Converter Type | DC-DC |
| Number of Outputs | 1 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Package Type | SO |
| Pin Count | 7 |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Length | 5.1mm |
| Dimensions | 5.1 x 4 x 1.5mm |
| Width | 4mm |
| Switching Regulator | Yes |
| Maximum Switching Frequency | 4 kHz |
| Height | 1.5mm |
