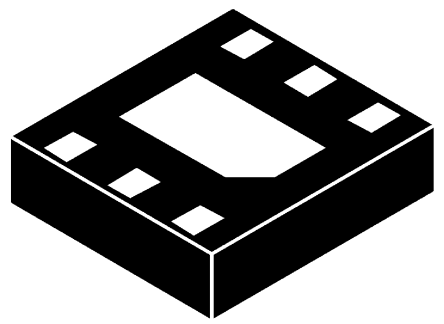

DiodesZetex 74LVC1G14FZ4-7, NOT Inverter, 1.65 → 5.5 V, 6-Pin DFN [74LVC1G14FZ4-7]; 770-5351
by DiodesZetex
0₫
Mã kho: 7705351
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NOT |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Package Type | DFN |
| Pin Count | 6 |
| Logic Family | LVC |
| Input Type | Schmitt Trigger |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 14 ns @ 1.8 V |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Height | 0.35mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 1.45 x 1.05 x 0.35mm |
| Output Type | Push-Pull |
| Length | 1.45mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.05mm |
