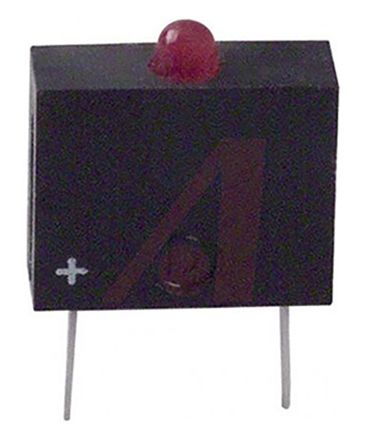

Dialight 555-3001F, Red PCB LED Indicator 2mm (T-3/4), Through Hole [555-3001F]; 890-7088
by Dialight
0₫
Mã kho: 8907088
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | Red |
| Number of LEDs | 1 |
| Mounting Type | Through Hole |
| Number of Pins | 2 |
| Viewing Angle | 40 ° |
| Dominant Wavelength | 650 nm |
| LED Orientation | Top |
| Dimensions | 7.62 x 2.54 x 7.49mm |
| Length | 7.62mm |
| Width | 2.54mm |
| Height | 7.49mm |
| Series | 555 |
| Power Dissipation | 80mW |
| Standards Met | MIL-STD-202F, RoHS Compliant, UL 94V-0 |
| Configuration | Single |
| Lens Colour | Red |
| Intensity | 1.2mcd |
| LED Size | 2mm (T-3/4) |
| Lens Finish | Non-Diffused |
