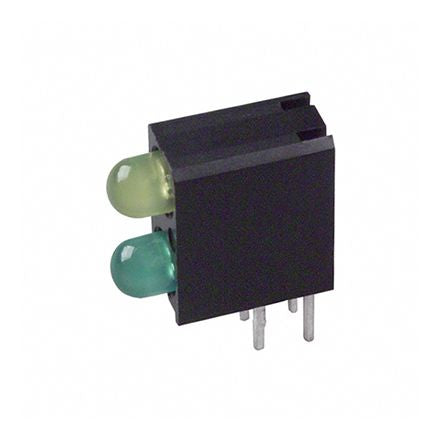

Dialight 553-0132F, Green & Yellow Right Angle PCB LED Indicator, 2 LEDs 3mm (T-1), Through Hole [553-0132F]; 890-7031
by Dialight
0₫
Mã kho: 8907031
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | Green, Yellow |
| Number of LEDs | 2 |
| Mounting Type | Through Hole |
| Number of Pins | 4 |
| Viewing Angle | 45 ° |
| Dominant Wavelength | 563 / 585 nm |
| LED Orientation | Right Angle |
| Dimensions | 4.32 x 10.92 x 9.65mm |
| Length | 4.32mm |
| Width | 10.92mm |
| Height | 9.65mm |
| LED Size | 3mm (T-1) |
| Power Dissipation | 60 (Yellow) mW, 75 (Green) mW |
| Configuration | Bi-Level |
| Forward Current | 10mA |
| Lens Finish | Diffused, Tinted |
| Lens Colour | White |
| Intensity | 6.3 (Yellow) mcd, 16 (Green) mcd |
| Standards Met | RoHS Compliant |
| Series | 553 |
