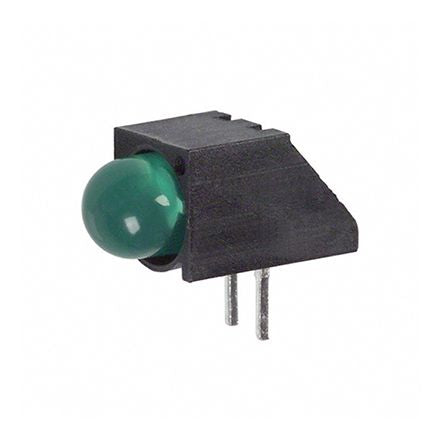

Dialight 550-0207F, Green Right Angle PCB LED Indicator 5mm (T-1 3/4), Through Hole [550-0207F]; 890-6921
by Dialight
0₫
Mã kho: 8906921
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| LED Colours | Green |
| Number of LEDs | 1 |
| Mounting Type | Through Hole |
| Number of Pins | 2 |
| Viewing Angle | 60 ° |
| Dominant Wavelength | 565 nm |
| LED Orientation | Right Angle |
| Dimensions | 6.1 x 12.45 x 6.1mm |
| Length | 6.1mm |
| Width | 12.45mm |
| Height | 6.1mm |
| Forward Current | 30mA |
| Lens Finish | Diffused |
| LED Size | 5mm (T-1 3/4) |
| Configuration | Single |
| Power Dissipation | 100mW |
| Lens Colour | Green |
| Standards Met | RoHS Compliant |
| Series | 550 |
| Intensity | 12.3mcd |
