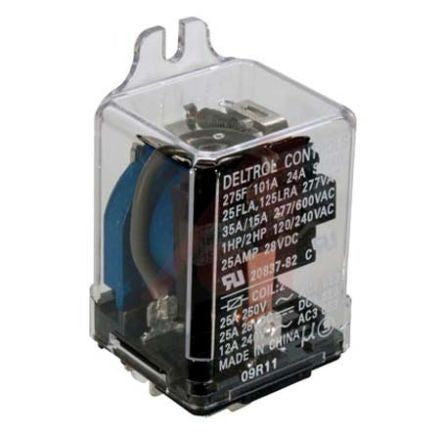

Deltrol DPDT Non-Latching Relay Plug In, 24V dc Coil, 35 A General Purpose Relay [20852-82]; 136-5234
by Deltrol
0₫
Mã kho: 1365234
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 1.8W |
| Coil Resistance | 56 Ω |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 35A |
| Terminal Type | Quick Connect |
| Number of Poles | 2 |
| Standards Met | Semko Certificate No. 809807, UL Recognised File No. E37066 (USA and Canada Recognition) |
| Depth | 34.8mm |
| Height | 73.66mm |
| Length | 38.1mm |
