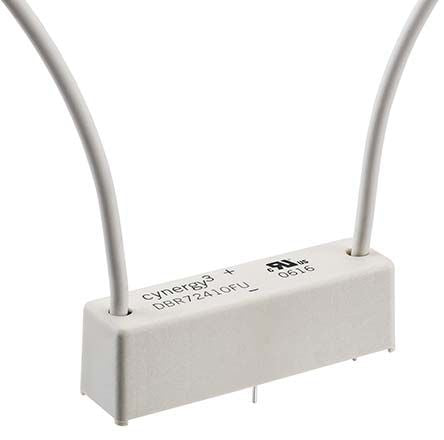

SPNO Reed Relay, 3 A, 24V dc [DAR72410FU/RS]; 124-5107
by Cynergy3
0₫
Mã kho: 1245107
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPNO |
| Coil Voltage | 24V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.125 |
| Maximum Switching Current DC | 0.125 |
| Maximum Switching Voltage AC | 1000V |
| Maximum Switching Voltage DC | 1000V |
| Coil Resistance | 780 Ω |
| Length | 60mm |
| Height | 18.5mm |
| Depth | 15.8mm |
| Dimensions | 60 x 15.8 x 18.5mm |
| Isolation Coil To Contact | 17kV |
| Maximum Operating Temperature | +70°C |
| Terminal Type | Flying Lead, PC Pin |
| Life | 1000000 (50 W) operations, 1000000000 (Dry) operations |
| Operating Temperature Range | -20 → +70°C |
| Operating Time Including Bounce | 3ms |
| Contact Material | Rhodium |
| Number of Poles | 1 |
| Relay Switching Classification | General Purpose Relay |
| Special Features | Excellent AC Characteristics, Low Contact Resistance |
| Standards Met | CULus Recognised, UL Approved |
| Maximum Switching Power DC | 50 W |
| Minimum Operating Temperature | -20°C |
| Contact Resistance | 50 mΩ |
