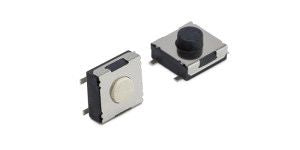

IP67 White Tactile Switch, Single Pole Single Throw (SPST) 50 mA 5mm Surface Mount [222BMVBAR]; 177-4352
by CTS
0₫
Mã kho: 1774352
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Gull Wing |
| Switch Operation | Momentary |
| Actuator Length | 5mm |
| Actuator Colour | White |
| Length | 6mm |
| Width | 3.5mm |
| Dimensions | 6 x 3.5mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Operating Force | 160 gf |
| Operating Temperature Range | -40 → +85°C |
| Voltage Rating | 12V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
