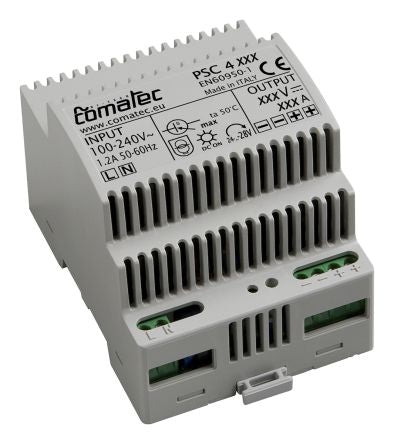

Comatec, PSC DIN Rail Power Supply, 24V dc Output Voltage, 2.5A Output Current [PSC4.60.24]; 891-9202
by Comatec
0₫
Mã kho: 8919202
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 2.5 A |
| Power Rating | 60W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Height | 93mm |
| Width | 72mm |
| Mounting Type | DIN Rail Mount |
| Series | PSC |
| Special Features | High Efficiency, High Reliability, Long Life |
| Standards Met | Class II, EN 55022, EN 55024, EN 60950-1, EN 61000-3-2-3 Class C, FCC Part 15 Class B |
| Maximum Temperature | +50°C |
| Depth | 68mm |
| Minimum Temperature | -10°C |
| Ripple And Noise | <120 mV Pk-Pk @ 0 → +50°C, <240 mV Pk-Pk @ -10 → 0°C |
| MTBF | 100000h |
| Output Voltage Adjustment Range | ±3% |
