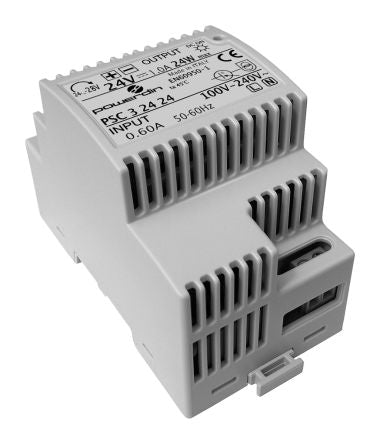

Comatec, PSC DIN Rail Power Supply, 24V dc Output Voltage, 1A Output Current [PSC3.24.24]; 891-9189
by Comatec
0₫
Mã kho: 8919189
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.0416666666666667 |
| Power Rating | 24W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Height | 93mm |
| Width | 52.5mm |
| Depth | 68mm |
| MTBF | 100000h |
| Ripple And Noise | <100mV Pk-Pk |
| Minimum Temperature | -10°C |
| Mounting Type | DIN Rail Mount |
| Standards Met | Class II, EN 55022, EN 55024, EN 60950-1, EN 61000-3-2 Class C, FCC Part 15 Class B |
| Series | PSC |
| Output Voltage Adjustment Range | ±3% |
| Maximum Temperature | +45°C |
| Special Features | High Efficiency, High Reliability, Long Life |
