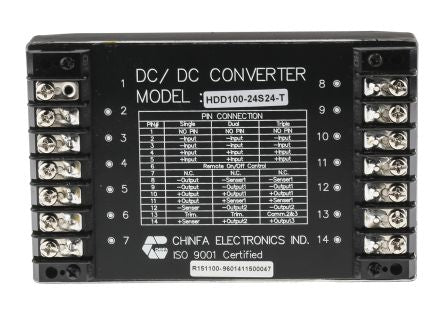

Chinfa HDD100 100W Isolated DC-DC Converter Surface Mount, Voltage in 18 → 36 V dc, Voltage out 24V dc [HDD100-24S24T]; 178-138
by Chinfa
0₫
Mã kho: 178138
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 18 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 100W |
| Output Current | 4A |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 0.85 |
| Package | Case HH 60-T |
| Minimum Temperature | -25°C |
| Maximum Temperature | +71°C |
| Depth | 22.35mm |
| Series | HDD100 |
| Length | 139.7mm |
