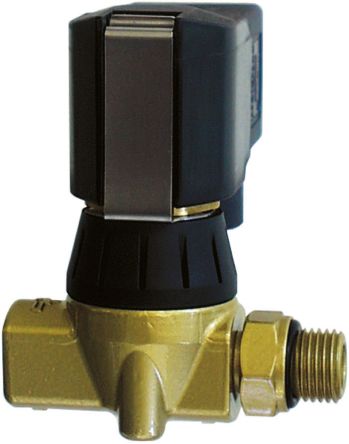

Buschjost Solenoid Valve 8466000.9101.02400, 3 port , NC, 24 V dc, 1/4in [8466000.9101.02400]; 529-5118
by Buschjost
0₫
Mã kho: 5295118
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 3 |
| Operation | Direct |
| Connection | 1/4 in G Female |
| Connection Size | 1/4in |
| Default Valve Position | NC |
| Suitable Applications | Neutral Liquid, Non-Lubricated Air |
| Type | 43892 |
| Orifice Diameter | 1.6mm |
| Body Material | Brass |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +60 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Connection Gender | Female |
| Series | 84660 |
| Maximum Opening Time | 8.5ms |
| Maximum Closing Time | 30.4ms |
| Thread Standard or Connection Type | G |
