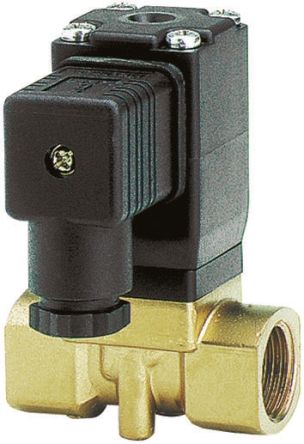

Buschjost Solenoid Valve 8256100.8001.02400, 2 port , NC, 24 V dc, 3/8in [8256100.8001.02400]; 490-743
by Buschjost
0₫
Mã kho: 490743
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 3/8 in G Female |
| Connection Size | 3/8in |
| Default Valve Position | NC |
| Suitable Applications | Aggressive Gas, Aggressive Liquid |
| Type | 43863 |
| Orifice Diameter | 10mm |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +50 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Connection Gender | Female |
| Series | 82560 |
| Flow Factor Kv | 1.7m³/h |
| Thread Standard or Connection Type | G |
